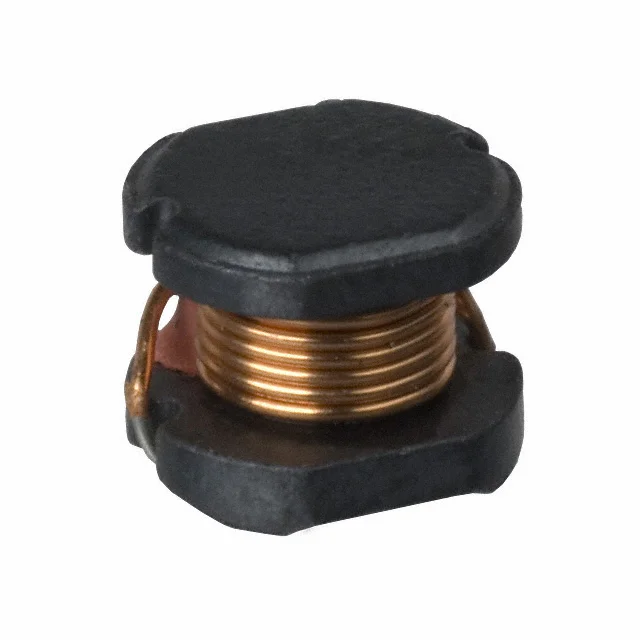

FIXED IND 120UH 480MA 930 MOHM
| Inductance | 120 µH |
| Tolerance | ±10% |
| Current Rating | 480 mA |
| DC Resistance (DCR) | 930mOhm |
| saturationCurrent | 600mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.228" L x 0.228" W (5.80mm x 5.80mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 120UH 480MA 930 MOHM |
| Series | PM54 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 22 @ 796kHz |
| selfResonantFreq | 7MHz |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.189" (4.80mm) |
| features | - |
