Description

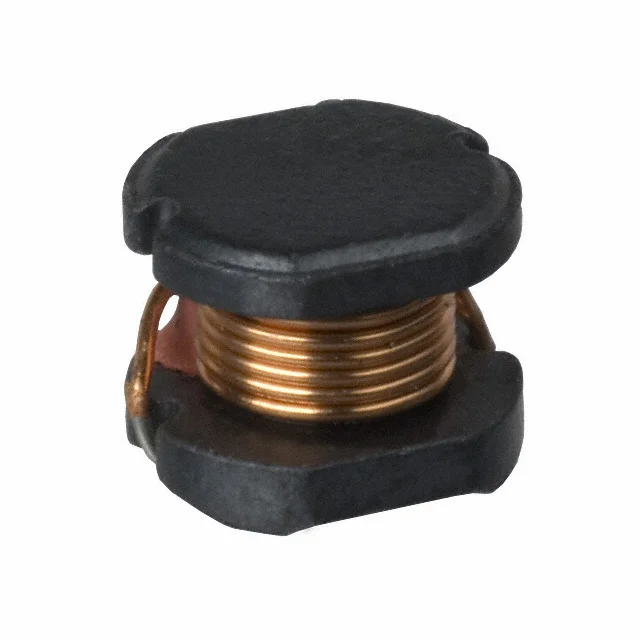

FIXED IND 18UH 1.23A 150 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PM54-180M.
PM54-180M has an inductance value of 18 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PM54-180M is rated for 1.23 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PM54-180M lists a DC resistance of 150mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PM54-180M uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PM54-180M to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 18 µH |
| Tolerance | ±20% |
| Current Rating | 1.23 A |
| DC Resistance (DCR) | 150mOhm |
| Operating Temperature | -30°C ~ 100°C |
| Dimensions | 0.228" L x 0.228" W (5.80mm x 5.80mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 18UH 1.23A 150 MOHM |
| Series | PM54 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Self Resonant Frequency | 23MHz |
| Inductance Test Frequency | 2.52 MHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.189" (4.80mm) |
