Description

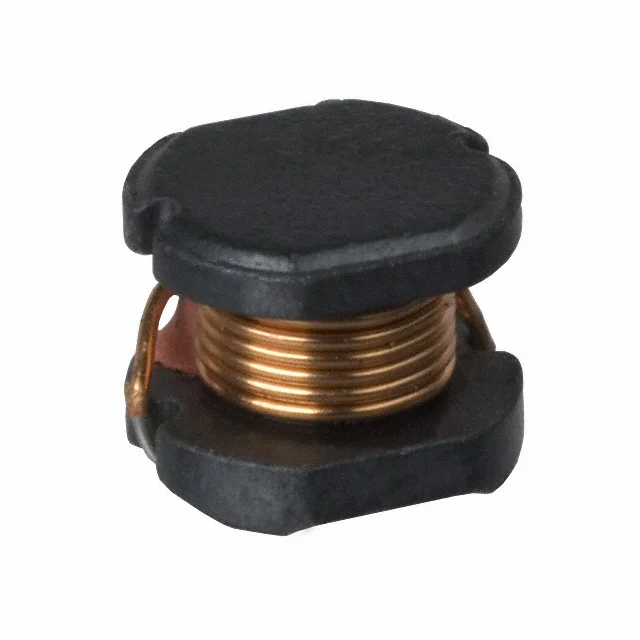

FIXED IND 180UH 380MA 1.38 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PM54-181K.
PM54-181K has an inductance value of 180 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PM54-181K is rated for 380 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PM54-181K lists a DC resistance of 1.38Ohm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PM54-181K uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PM54-181K to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 180 µH |
| Tolerance | ±10% |
| Current Rating | 380 mA |
| DC Resistance (DCR) | 1.38Ohm |
| Operating Temperature | -30°C ~ 100°C |
| Dimensions | 0.228" L x 0.228" W (5.80mm x 5.80mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 180UH 380MA 1.38 OHM |
| Series | PM54 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Self Resonant Frequency | 6MHz |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.189" (4.80mm) |
