Description

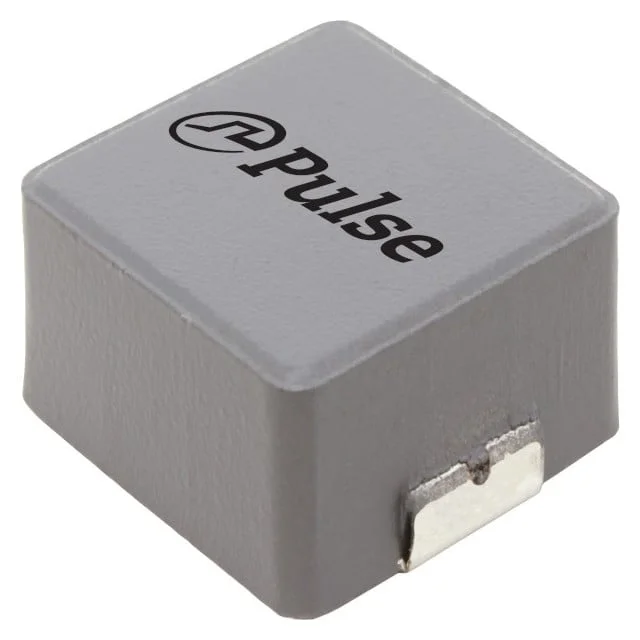

FIXED IND 180NH 13.5A 5.4 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PM5402.181NLT.
PM5402.181NLT has an inductance value of 180 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PM5402.181NLT is rated for 13.5 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PM5402.181NLT lists a DC resistance of 5.4mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PM5402.181NLT uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PM5402.181NLT to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 180 nH |
| Tolerance | ±20% |
| Current Rating | 13.5 A |
| DC Resistance (DCR) | 5.4mOhm Max |
| Saturation Current | 28A |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.175" L x 0.160" W (4.45mm x 4.06mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 180NH 13.5A 5.4 MOHM |
| Series | PM5402 |
| Product Status | Active |
| Type / Construction | Molded |
| Shielding | Shielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.079" (2.00mm) |
