Description

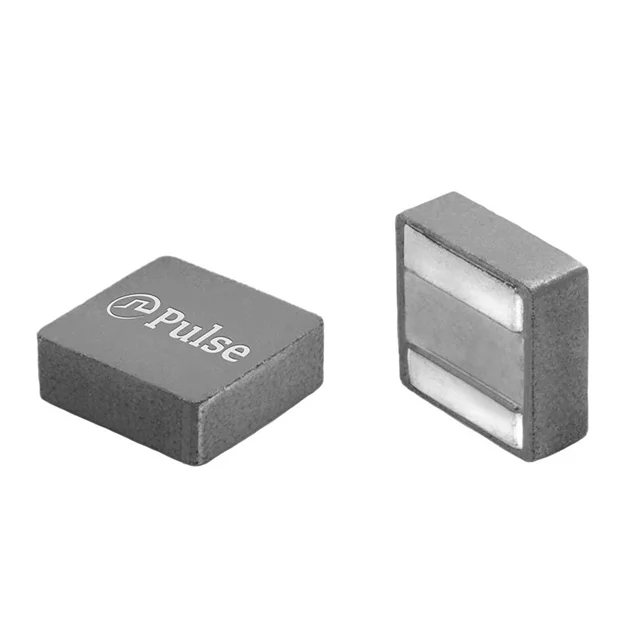

FIXED IND 2.2UH 37A 2.48 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PM5433.222NLT.
PM5433.222NLT has an inductance value of 2.2 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PM5433.222NLT is rated for 37 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PM5433.222NLT lists a DC resistance of 2.48mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PM5433.222NLT uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PM5433.222NLT to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating | 37 A |
| DC Resistance (DCR) | 2.48mOhm Max |
| Operating Temperature | -55°C ~ 155°C |
| Dimensions | 0.650" L x 0.610" W (16.50mm x 15.50mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 2.2UH 37A 2.48 MOHM |
| Series | PM5433.XXXNLT |
| Product Status | Active |
| Shielding | Shielded |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.315" (8.00mm) |
