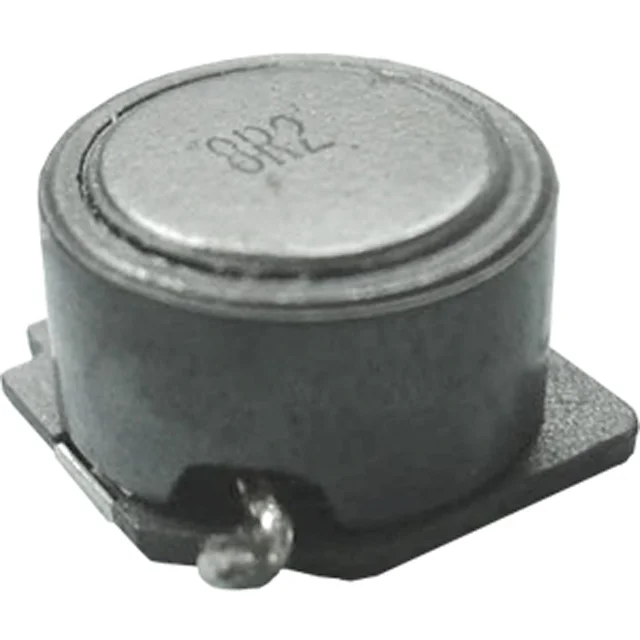

FIXED IND 33UH 760MA 200 MOHM
| Inductance | 33 µH |
| Tolerance | ±20% |
| Current Rating | 760 mA |
| DC Resistance (DCR) | 200mOhm Max |
| saturationCurrent | 860mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.276" L x 0.276" W (7.00mm x 7.00mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 33UH 760MA 200 MOHM |
| Series | PM7032S |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | 23 @ 2.52MHz |
| selfResonantFreq | 20MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.134" (3.40mm) |
| features | - |
