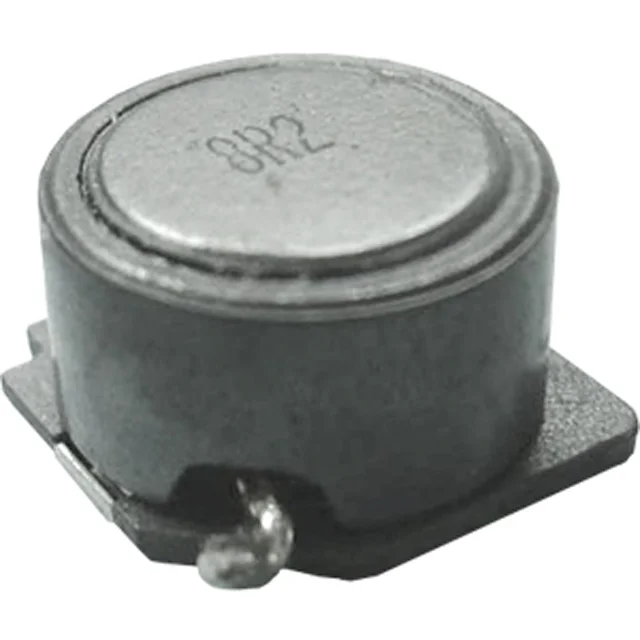

FIXED IND 680UH 160MA 3.75 OHM
| Inductance | 680 µH |
| Tolerance | ±20% |
| Current Rating | 160 mA |
| DC Resistance (DCR) | 3.75Ohm Max |
| saturationCurrent | 150mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.276" L x 0.276" W (7.00mm x 7.00mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 680UH 160MA 3.75 OHM |
| Series | PM7032S |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | 58 @ 796kHz |
| selfResonantFreq | 3.8MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.134" (3.40mm) |
| features | - |
