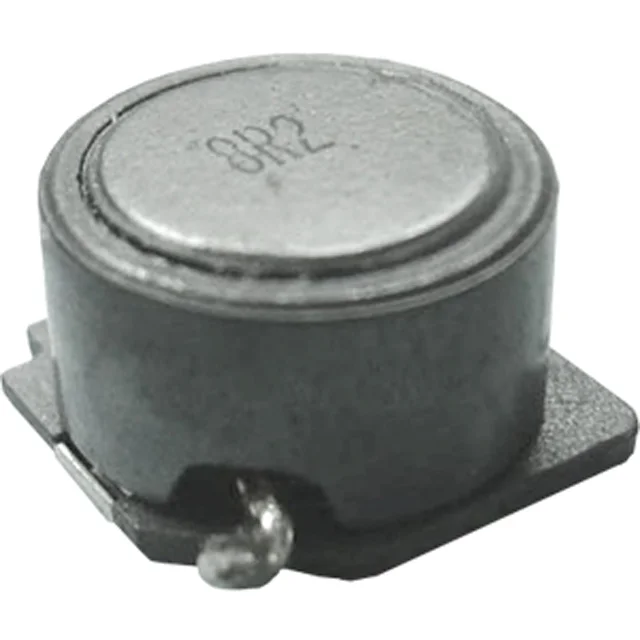

FIXED IND 6.8UH 1.6A 54 MOHM SMD
| Inductance | 6.8 µH |
| Tolerance | ±20% |
| Current Rating | 1.6 A |
| DC Resistance (DCR) | 54mOhm Max |
| saturationCurrent | 1.8A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.276" L x 0.276" W (7.00mm x 7.00mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 6.8UH 1.6A 54 MOHM SMD |
| Series | PM7032S |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | 17 @ 7.96MHz |
| selfResonantFreq | 37MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.134" (3.40mm) |
| features | - |
