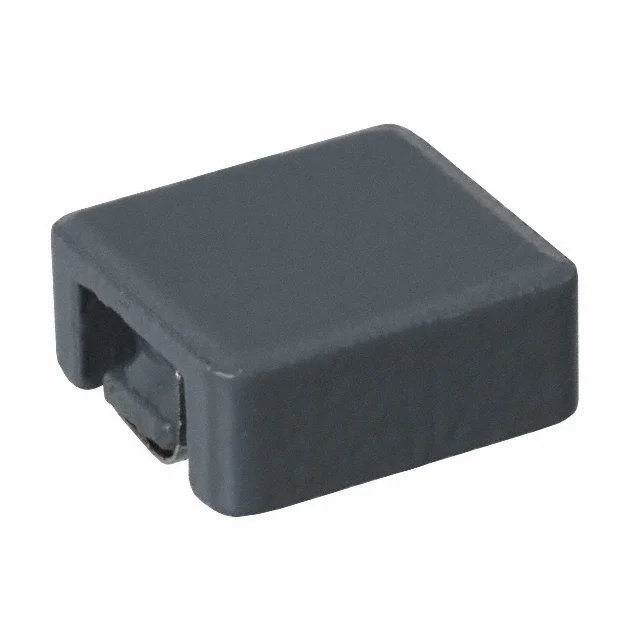

FIXED IND 1.5UH 9A 9.5 MOHM SMD
| Inductance | 1.5 µH |
| Tolerance | ±20% |
| Current Rating | 9 A |
| DC Resistance (DCR) | 9.5mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 150°C |
| Dimensions | 0.307" L x 0.276" W (7.80mm x 7.00mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 1.5UH 9A 9.5 MOHM SMD |
| Series | PM7232S |
| productStatus | Obsolete |
| typeConstruction | Wirewound |
| coreMaterial | - |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.126" (3.20mm) |
| features | - |
