Description

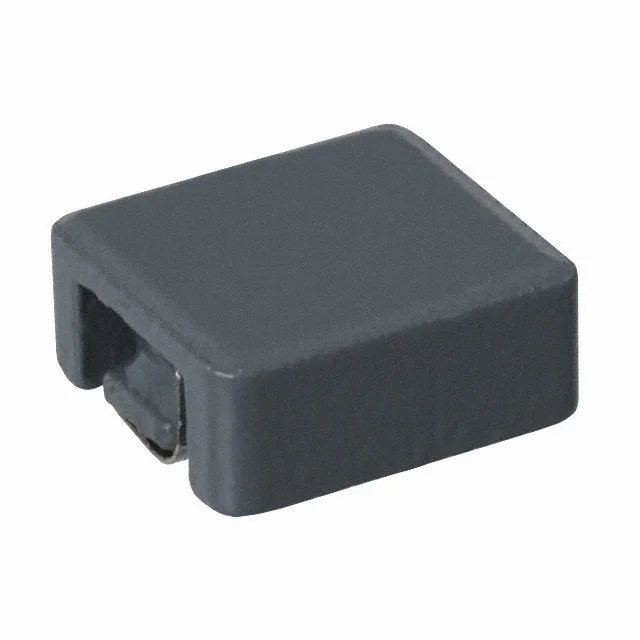

FIXED IND 110NH 13A SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PM7232S-R11M.
PM7232S-R11M has an inductance value of 110 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PM7232S-R11M is rated for 13 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PM7232S-R11M uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PM7232S-R11M to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 110 nH |
| Tolerance | ±20% |
| Current Rating | 13 A |
| Operating Temperature | -40°C ~ 150°C |
| Dimensions | 0.307" L x 0.276" W (7.80mm x 7.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 110NH 13A SMD |
| Series | PM7232S |
| Product Status | Obsolete |
| Type / Construction | Wirewound |
| Shielding | Shielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.126" (3.20mm) |
