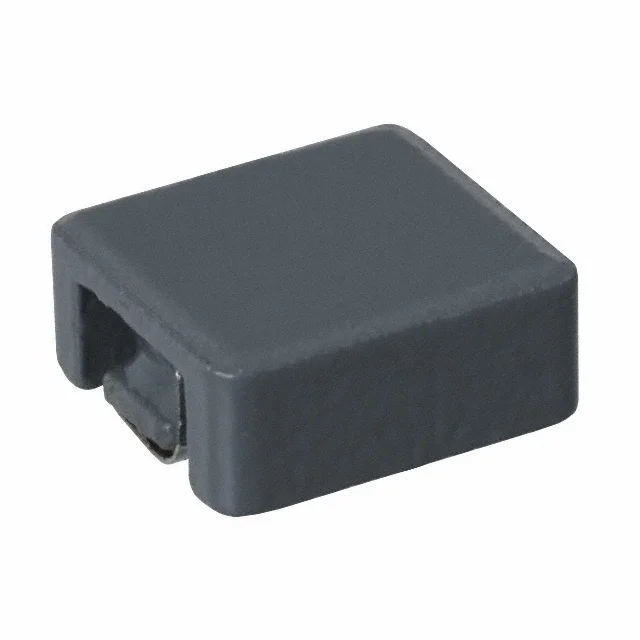

FIXED IND 220NH 23A 2.8 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PM7232S-R22M-RC.
PM7232S-R22M-RC has an inductance value of 220 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PM7232S-R22M-RC is rated for 23 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PM7232S-R22M-RC lists a DC resistance of 2.8mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PM7232S-R22M-RC uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PM7232S-R22M-RC to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 220 nH |
| Tolerance | ±20% |
| Current Rating | 23 A |
| DC Resistance (DCR) | 2.8mOhm Max |
| Saturation Current | 36A |
| Operating Temperature | -55°C ~ 150°C |
| Dimensions | 0.307" L x 0.276" W (7.80mm x 7.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 220NH 23A 2.8 MOHM SMD |
| Series | PM7232S |
| Product Status | Last Time Buy |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Iron |
| Shielding | Shielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.126" (3.20mm) |
