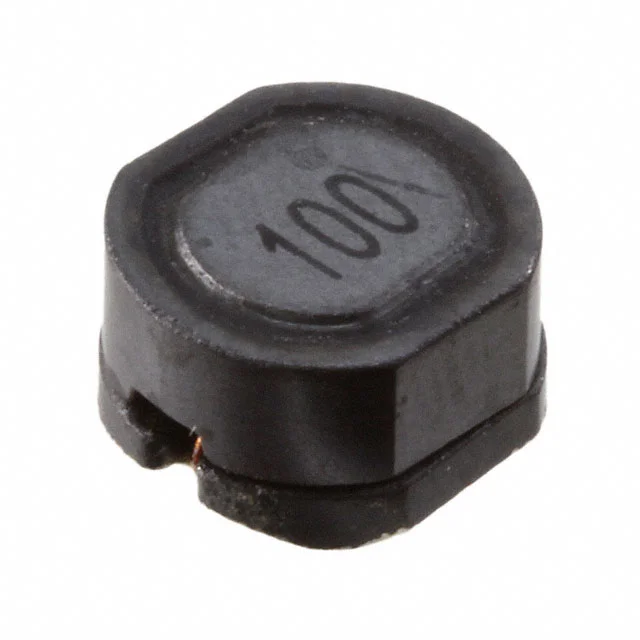

FIXED IND 270UH 330MA 1.3 OHM
| Inductance | 270 µH |
| Tolerance | ±10% |
| Current Rating | 330 mA |
| DC Resistance (DCR) | 1.3Ohm Max |
| saturationCurrent | 530mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.307" L x 0.276" W (7.80mm x 7.00mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 270UH 330MA 1.3 OHM |
| Series | PM74SB |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | 4MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.193" (4.90mm) |
| features | - |
