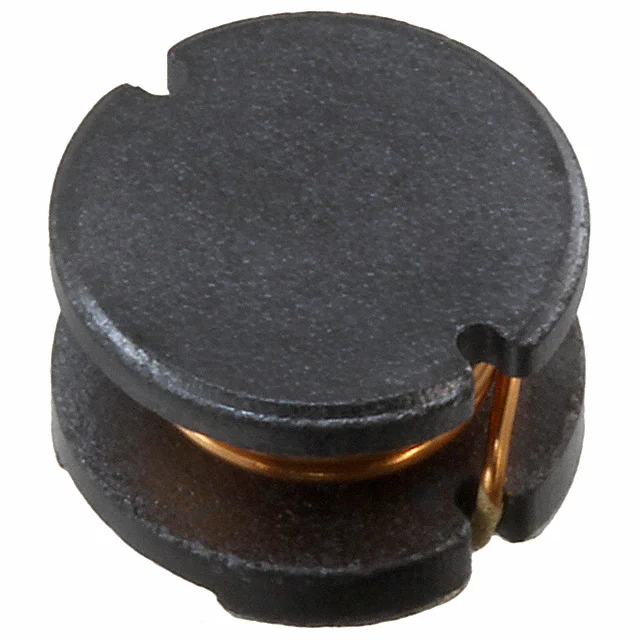

FIXED IND 47UH 1A 200 MOHM SMD
| Inductance | 47 µH |
| Tolerance | ±10% |
| Current Rating | 1 A |
| DC Resistance (DCR) | 200mOhm Max |
| saturationCurrent | 1.6A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.307" L x 0.307" W (7.80mm x 7.80mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 47UH 1A 200 MOHM SMD |
| Series | PM75 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 15 @ 2.52MHz |
| selfResonantFreq | 9MHz |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.209" (5.30mm) |
| features | - |
