Description

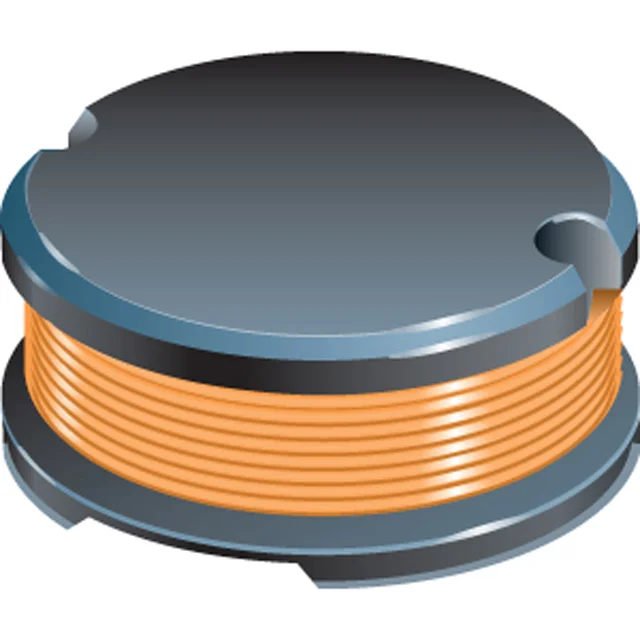

FIXED IND 68UH 850MA 300 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PM75-680K-RC.
PM75-680K-RC has an inductance value of 68 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PM75-680K-RC is rated for 850 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PM75-680K-RC lists a DC resistance of 300mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PM75-680K-RC uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PM75-680K-RC to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 68 µH |
| Tolerance | ±10% |
| Current Rating | 850 mA |
| DC Resistance (DCR) | 300mOhm Max |
| Saturation Current | 1.3A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.307" L x 0.307" W (7.80mm x 7.80mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 68UH 850MA 300 MOHM |
| Series | PM75 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | 15 @ 2.52MHz |
| Self Resonant Frequency | 8MHz |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.209" (5.30mm) |
