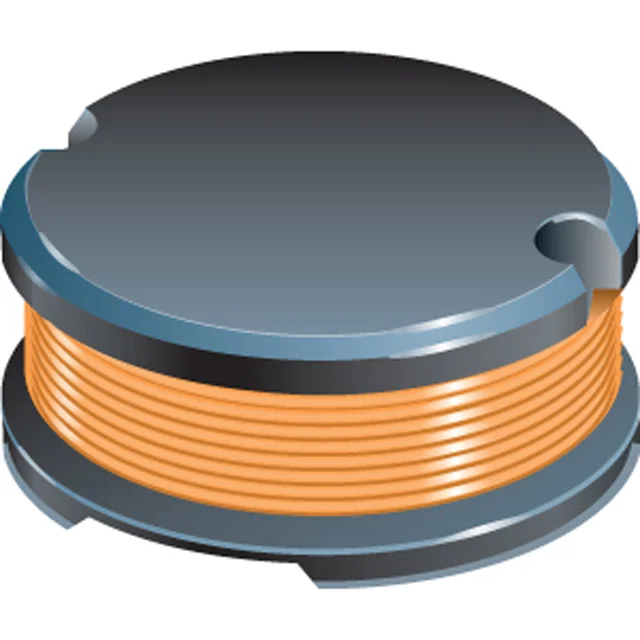

FIXED IND 82UH 780MA 370 MOHM
| Inductance | 82 µH |
| Tolerance | ±10% |
| Current Rating | 780 mA |
| DC Resistance (DCR) | 370mOhm Max |
| saturationCurrent | 1.2A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.307" L x 0.307" W (7.80mm x 7.80mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 82UH 780MA 370 MOHM |
| Series | PM75 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 12 @ 2.52MHz |
| selfResonantFreq | 7MHz |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.209" (5.30mm) |
| features | - |
