Description

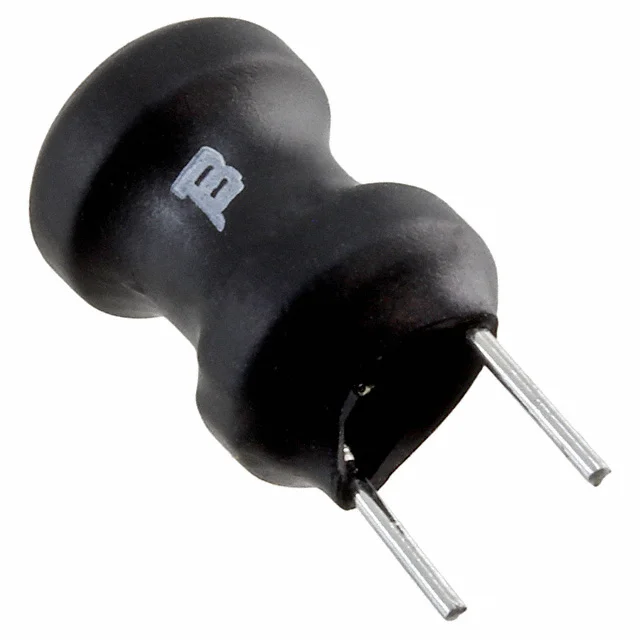

FIXED IND 600UH 200MA 4 OHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PT12120SL.
PT12120SL has an inductance value of 600 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PT12120SL is rated for 200 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PT12120SL lists a DC resistance of 4Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PT12120SL uses a package or case of Radial, Vertical Cylinder. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PT12120SL to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 600 µH |
| Tolerance | ±10% |
| Current Rating | 200 mA |
| DC Resistance (DCR) | 4Ohm Max |
| Operating Temperature | -20°C ~ 80°C |
| Dimensions | 0.400" Dia (10.15mm) |
| Case / Size | Radial, Vertical Cylinder |
| Package / Case | Radial, Vertical Cylinder |
| Supplier | Bourns Inc. |
| Description | FIXED IND 600UH 200MA 4 OHM TH |
| Series | PT121 |
| Product Status | Obsolete |
| Type / Construction | Wirewound |
| Shielding | Unshielded |
| Q @ Frequency | 80 @ 796kHz |
| Self Resonant Frequency | 1.6MHz |
| Inductance Test Frequency | 796 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.500" (12.70mm) |
