Description

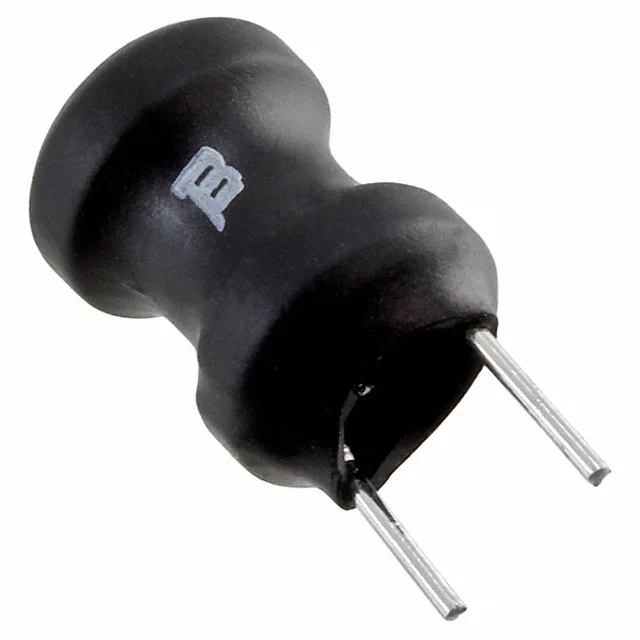

FIXED IND 8.2MH 50MA 26 OHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PT12133SJL.
PT12133SJL has an inductance value of 8.2 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PT12133SJL is rated for 50 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PT12133SJL lists a DC resistance of 26Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PT12133SJL uses a package or case of Radial, Vertical Cylinder. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PT12133SJL to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 8.2 mH |
| Tolerance | ±5% |
| Current Rating | 50 mA |
| DC Resistance (DCR) | 26Ohm Max |
| Operating Temperature | -20°C ~ 80°C |
| Dimensions | 0.400" Dia (10.15mm) |
| Case / Size | Radial, Vertical Cylinder |
| Package / Case | Radial, Vertical Cylinder |
| Supplier | Bourns Inc. |
| Description | FIXED IND 8.2MH 50MA 26 OHM TH |
| Series | PT121 |
| Product Status | Active |
| Type / Construction | Wirewound |
| Shielding | Unshielded |
| Q @ Frequency | 90 @ 252kHz |
| Self Resonant Frequency | 500kHz |
| Inductance Test Frequency | 252 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.500" (12.70mm) |
