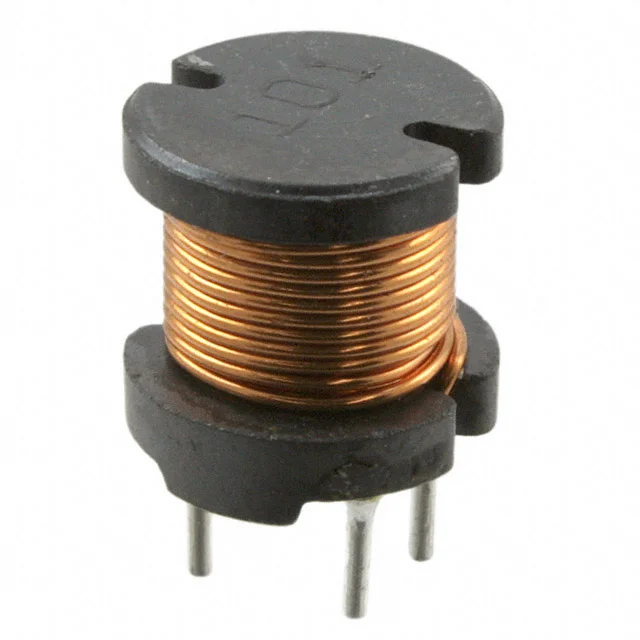

FIXED IND 22UH 3.6A 37 MOHM TH
| Inductance | 22 µH |
| Tolerance | ±20% |
| Current Rating | 3.6 A |
| DC Resistance (DCR) | 37mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | 0.394" Dia (10.00mm) |
| Case / Size | Radial, Vertical Cylinder, 4 Leads (Open) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 22UH 3.6A 37 MOHM TH |
| Series | RL110 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 20 @ 2.52MHz |
| selfResonantFreq | 6.8MHz |
| ratings | - |
| testFrequency | 2.52 MHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | 0.413" (10.50mm) |
| features | - |
