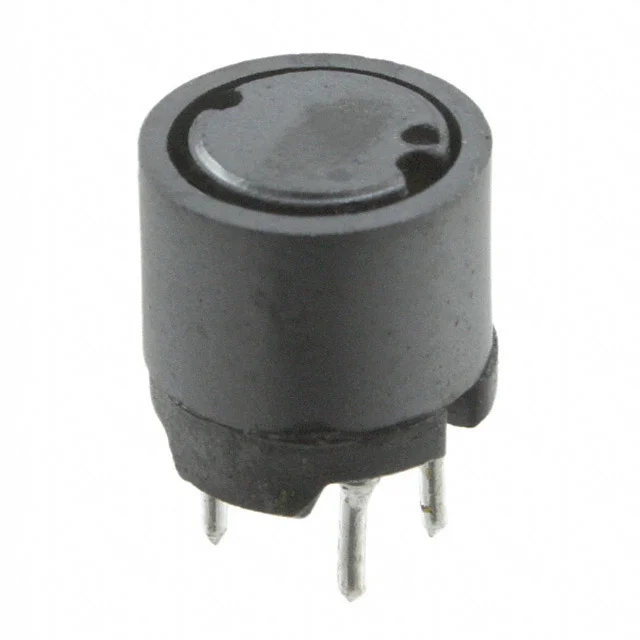

Description
FIXED IND 100UH 1.2A 190 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for RL110S-101L-RC.
RL110S-101L-RC has an inductance value of 100 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
RL110S-101L-RC is rated for 1.2 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
RL110S-101L-RC lists a DC resistance of 190mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
RL110S-101L-RC uses a package or case of Radial, Vertical Cylinder, 4 Leads. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from RL110S-101L-RC to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 100 µH |
| Tolerance | ±15% |
| Current Rating | 1.2 A |
| DC Resistance (DCR) | 190mOhm Max |
| Operating Temperature | -30°C ~ 100°C |
| Dimensions | 0.394" Dia (10.00mm) |
| Case / Size | Radial, Vertical Cylinder, 4 Leads |
| Package / Case | Radial, Vertical Cylinder, 4 Leads |
| Supplier | Bourns Inc. |
| Description | FIXED IND 100UH 1.2A 190 MOHM TH |
| Series | RL110S |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Q @ Frequency | 30 @ 790kHz |
| Self Resonant Frequency | 4.4MHz |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.413" (10.50mm) |
