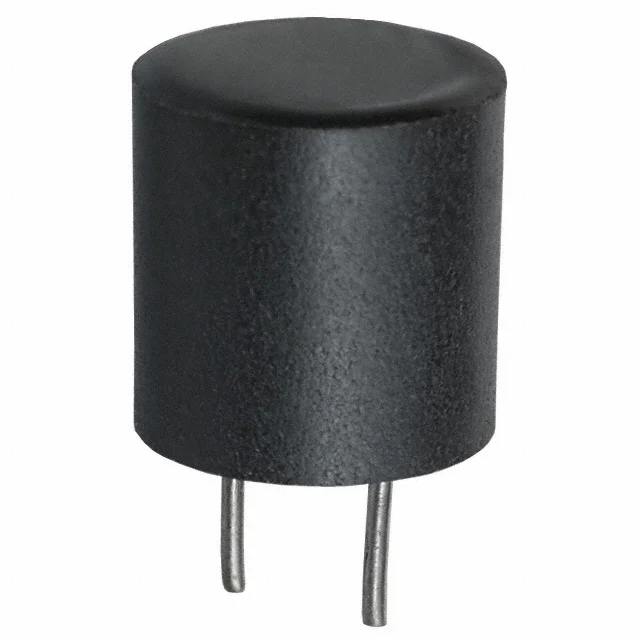

FIXED IND 12MH 25MA 12 OHM TH
| Inductance | 12 mH |
| Tolerance | ±5% |
| Current Rating | 25 mA |
| DC Resistance (DCR) | 12Ohm Max |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.413" Dia (10.50mm) |
| Case / Size | Radial, Vertical Cylinder |
| Supplier | Bourns Inc. |
| Description | FIXED IND 12MH 25MA 12 OHM TH |
| Series | RL181S |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | 100 @ 50kHz |
| selfResonantFreq | 220kHz |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | 0.551" (14.00mm) |
| features | - |
