Description

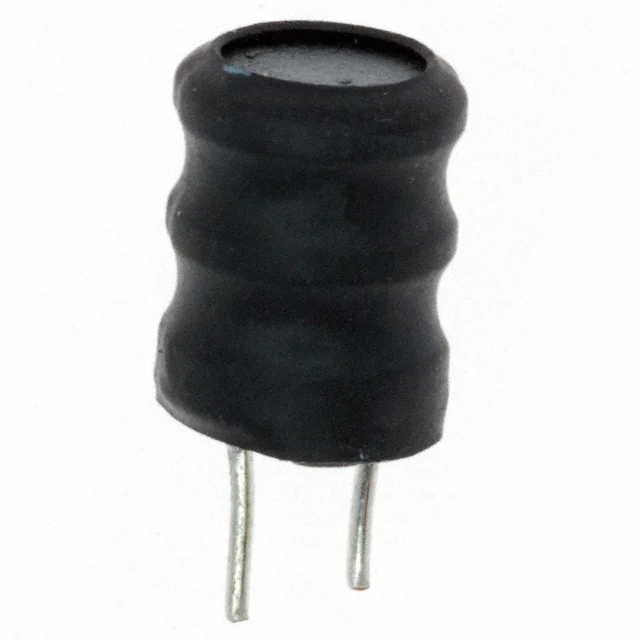

FIXED IND 10MH 40MA 40 OHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for RL187-103J-RC.
RL187-103J-RC has an inductance value of 10 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
RL187-103J-RC is rated for 40 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
RL187-103J-RC lists a DC resistance of 40Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
RL187-103J-RC uses a package or case of Radial, Vertical Cylinder. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from RL187-103J-RC to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 10 mH |
| Tolerance | ±5% |
| Current Rating | 40 mA |
| DC Resistance (DCR) | 40Ohm Max |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.315" Dia (8.00mm) |
| Case / Size | Radial, Vertical Cylinder |
| Package / Case | Radial, Vertical Cylinder |
| Supplier | Bourns Inc. |
| Description | FIXED IND 10MH 40MA 40 OHM TH |
| Series | RL187 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | 100 @ 79.6kHz |
| Self Resonant Frequency | 400kHz |
| Inductance Test Frequency | 79.6 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.441" (11.20mm) |
