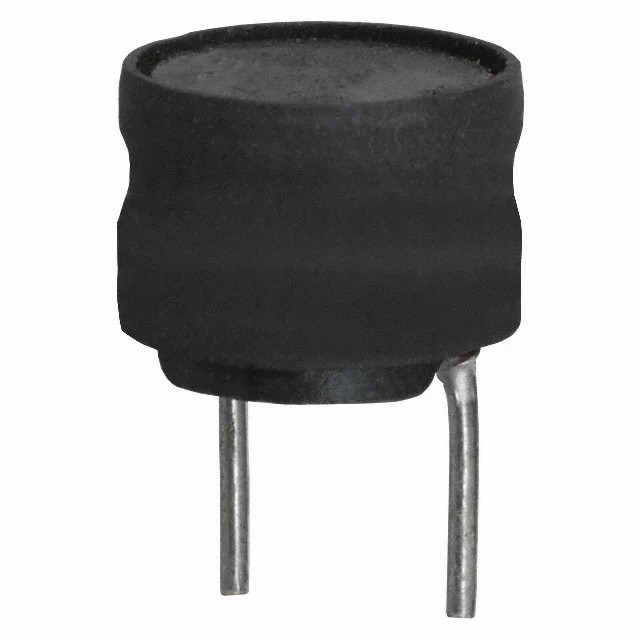

FIXED IND 4.7MH 40MA 32 OHM TH
| Inductance | 4.7 mH |
| Tolerance | ±5% |
| Current Rating | 40 mA |
| DC Resistance (DCR) | 32Ohm Max |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.315" Dia (8.00mm) |
| Case / Size | Radial, Vertical Cylinder |
| Supplier | Bourns Inc. |
| Description | FIXED IND 4.7MH 40MA 32 OHM TH |
| Series | RL262 |
| productStatus | Obsolete |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 80 @ 252kHz |
| selfResonantFreq | 800kHz |
| ratings | - |
| testFrequency | 252 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | 0.244" (6.20mm) |
| features | - |
