Description

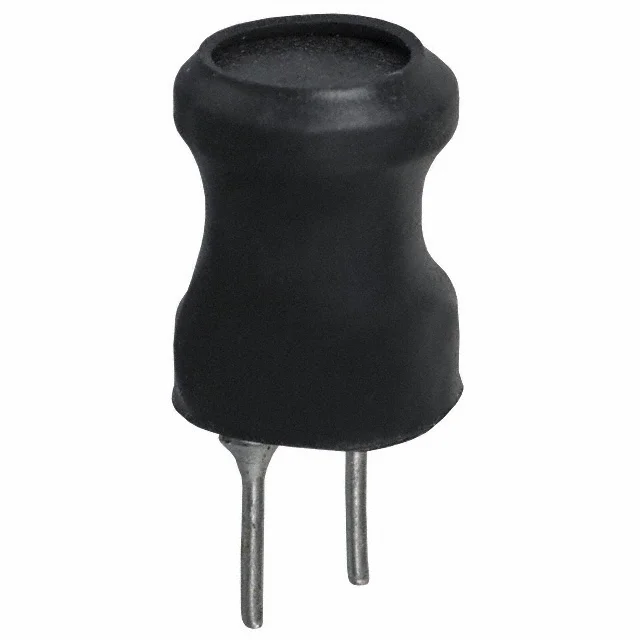

FIXED IND 12MH 40MA 33 OHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for RL622-123K-RC.
RL622-123K-RC has an inductance value of 12 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
RL622-123K-RC is rated for 40 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
RL622-123K-RC lists a DC resistance of 33Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
RL622-123K-RC uses a package or case of Radial, Vertical Cylinder. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from RL622-123K-RC to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 12 mH |
| Tolerance | ±10% |
| Current Rating | 40 mA |
| DC Resistance (DCR) | 33Ohm Max |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.335" Dia (8.50mm) |
| Case / Size | Radial, Vertical Cylinder |
| Package / Case | Radial, Vertical Cylinder |
| Supplier | Bourns Inc. |
| Description | FIXED IND 12MH 40MA 33 OHM TH |
| Series | RL622 |
| Product Status | Not For New Designs |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | 40 @ 79.6kHz |
| Self Resonant Frequency | 300kHz |
| Inductance Test Frequency | 79.6 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.433" (11.00mm) |
