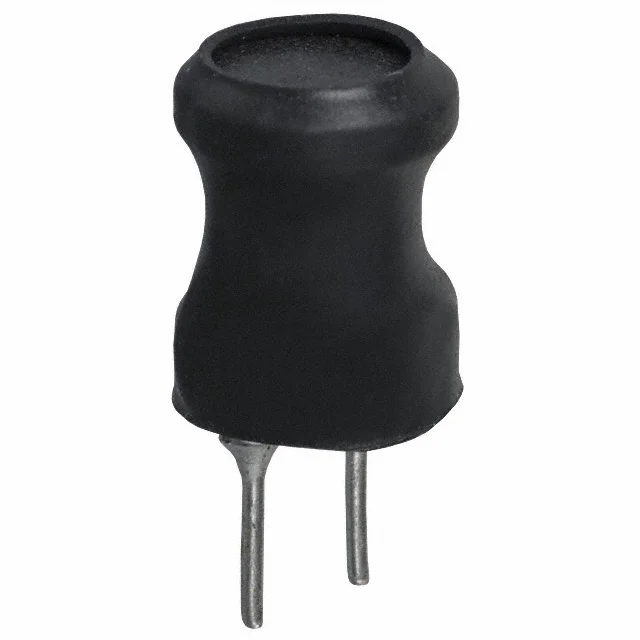

FIXED IND 68MH 20MA 150 OHM TH
| Inductance | 68 mH |
| Tolerance | ±10% |
| Current Rating | 20 mA |
| DC Resistance (DCR) | 150Ohm Max |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.335" Dia (8.50mm) |
| Case / Size | Radial, Vertical Cylinder |
| Supplier | Bourns Inc. |
| Description | FIXED IND 68MH 20MA 150 OHM TH |
| Series | RL622 |
| productStatus | Not For New Designs |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 20 @ 79.6kHz |
| selfResonantFreq | 100kHz |
| ratings | - |
| testFrequency | 79.6 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | 0.433" (11.00mm) |
| features | - |
