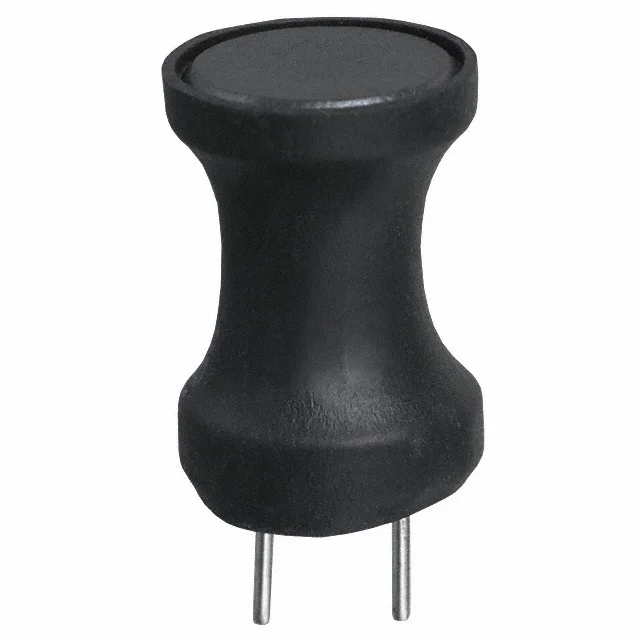

FIXED IND 15UH 1.93A 65 MOHM TH
| Inductance | 15 µH |
| Tolerance | ±10% |
| Current Rating | 1.93 A |
| DC Resistance (DCR) | 65mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.413" Dia (10.50mm) |
| Case / Size | Radial, Vertical Cylinder |
| Supplier | Bourns Inc. |
| Description | FIXED IND 15UH 1.93A 65 MOHM TH |
| Series | RL824 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 135 @ 2.5MHz |
| selfResonantFreq | 25MHz |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | 0.610" (15.50mm) |
| features | - |
