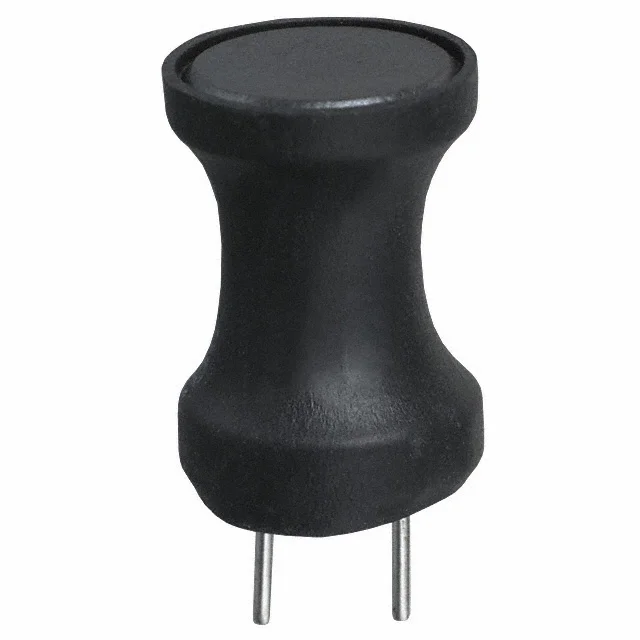

FIXED IND 150UH 920MA 220 MOHM
| Inductance | 150 µH |
| Tolerance | ±10% |
| Current Rating | 920 mA |
| DC Resistance (DCR) | 220mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.413" Dia (10.50mm) |
| Case / Size | Radial, Vertical Cylinder |
| Supplier | Bourns Inc. |
| Description | FIXED IND 150UH 920MA 220 MOHM |
| Series | RL824 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 58 @ 790kHz |
| selfResonantFreq | 2.2MHz |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | 0.610" (15.50mm) |
| features | - |
