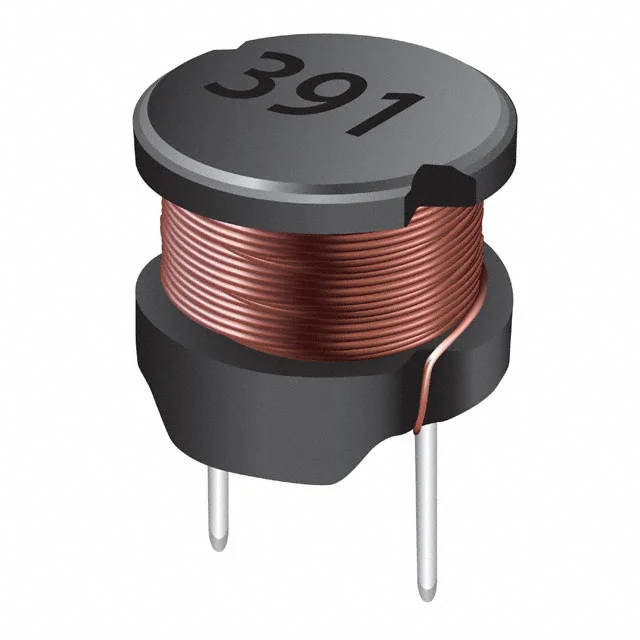

FIXED IND 220UH 570MA 630 MOHM
| Inductance | 220 µH |
| Tolerance | ±10% |
| Current Rating | 570 mA |
| DC Resistance (DCR) | 630mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | 0.307" Dia (7.80mm) |
| Case / Size | Radial, Vertical Cylinder (Open) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 220UH 570MA 630 MOHM |
| Series | RL875 |
| productStatus | Obsolete |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 18 @ 796kHz |
| selfResonantFreq | 5MHz |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | 0.295" (7.50mm) |
