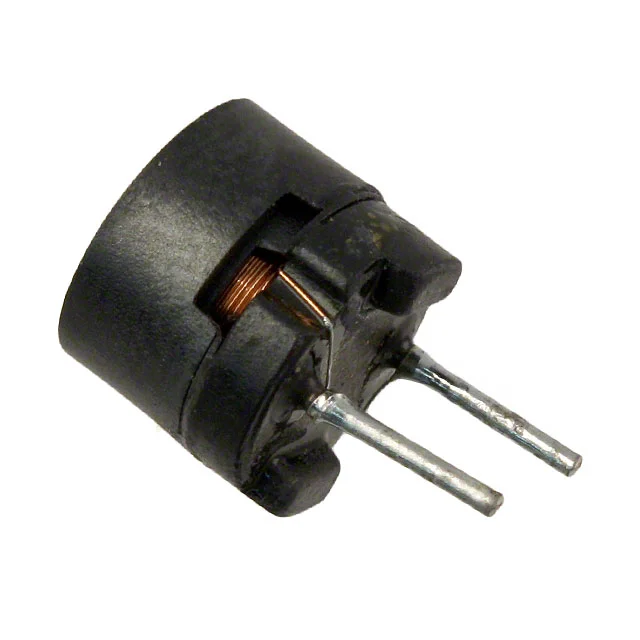

Description
FIXED IND 270UH 450MA 860 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for RL875S-271K-RC.
RL875S-271K-RC has an inductance value of 270 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
RL875S-271K-RC is rated for 450 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
RL875S-271K-RC lists a DC resistance of 860mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
RL875S-271K-RC uses a package or case of Radial, Vertical Cylinder. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from RL875S-271K-RC to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 270 µH |
| Tolerance | ±10% |
| Current Rating | 450 mA |
| DC Resistance (DCR) | 860mOhm Max |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | 0.307" Dia (7.80mm) |
| Case / Size | Radial, Vertical Cylinder |
| Package / Case | Radial, Vertical Cylinder |
| Supplier | Bourns Inc. |
| Description | FIXED IND 270UH 450MA 860 MOHM |
| Series | RL875S |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Q @ Frequency | 40 @ 796kHz |
| Self Resonant Frequency | 4MHz |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.295" (7.50mm) |
