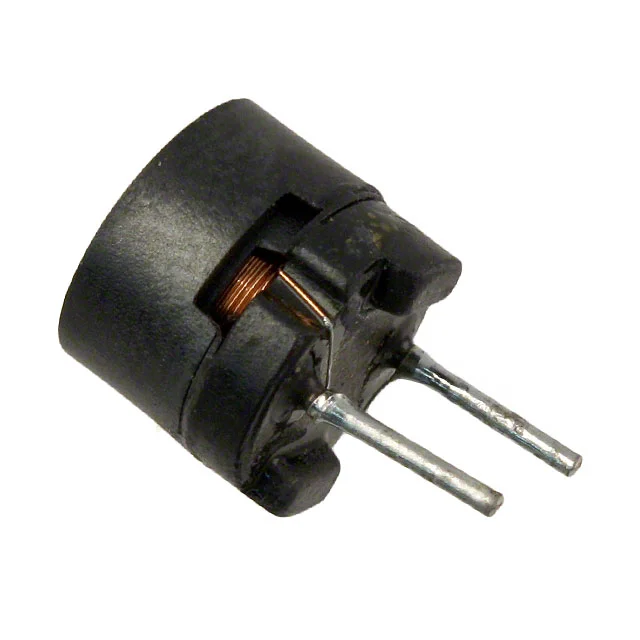

FIXED IND 33UH 1.3A 140 MOHM TH
| Inductance | 33 µH |
| Tolerance | ±15% |
| Current Rating | 1.3 A |
| DC Resistance (DCR) | 140mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | 0.307" Dia (7.80mm) |
| Case / Size | Radial, Vertical Cylinder |
| Supplier | Bourns Inc. |
| Description | FIXED IND 33UH 1.3A 140 MOHM TH |
| Series | RL875S |
| productStatus | Obsolete |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | 35 @ 2.52MHz |
| selfResonantFreq | 13.5MHz |
| ratings | - |
| testFrequency | 2.52 MHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | 0.295" (7.50mm) |
| features | - |
