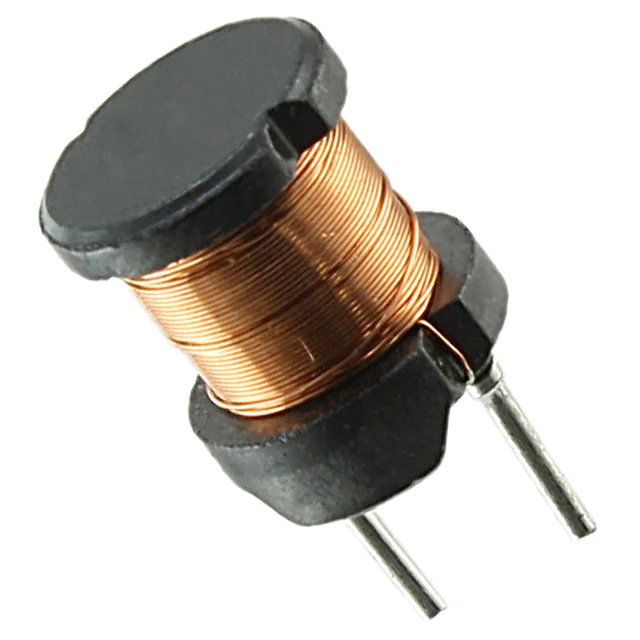

FIXED IND 10MH 89MA 22 OHM TH
| Inductance | 10 mH |
| Tolerance | ±10% |
| Current Rating | 89 mA |
| DC Resistance (DCR) | 22Ohm Max |
| saturationCurrent | - |
| Operating Temperature | -30°C ~ 100°C |
| Dimensions | 0.307" Dia (7.80mm) |
| Case / Size | Radial, Vertical Cylinder (Open) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 10MH 89MA 22 OHM TH |
| Series | RL895 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 80 @ 79.6kHz |
| selfResonantFreq | 400kHz |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | 0.374" (9.50mm) |
| features | - |
