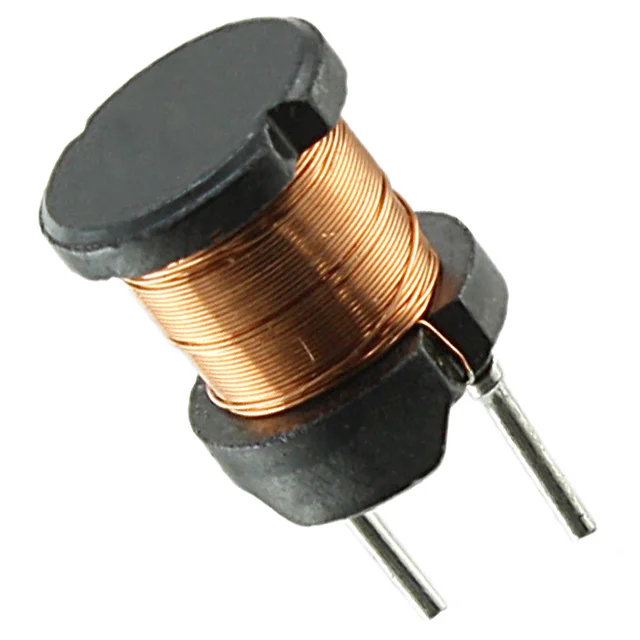

Description
FIXED IND 22MH 59MA 44.9 OHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for RL895-223K.
RL895-223K has an inductance value of 22 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
RL895-223K is rated for 59 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
RL895-223K lists a DC resistance of 44.9Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
RL895-223K uses a package or case of Radial, Vertical Cylinder (Open). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from RL895-223K to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 22 mH |
| Tolerance | ±10% |
| Current Rating | 59 mA |
| DC Resistance (DCR) | 44.9Ohm Max |
| Operating Temperature | -30°C ~ 100°C |
| Dimensions | 0.307" Dia (7.80mm) |
| Case / Size | Radial, Vertical Cylinder (Open) |
| Package / Case | Radial, Vertical Cylinder (Open) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 22MH 59MA 44.9 OHM TH |
| Series | RL895 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.374" (9.50mm) |
