Description

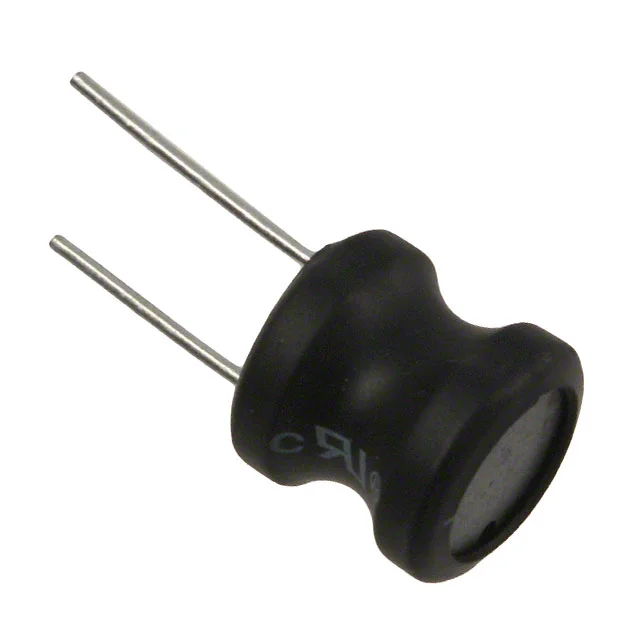

FIXED IND 680UH 380MA 790 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for RLB1314-681KL.
RLB1314-681KL has an inductance value of 680 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
RLB1314-681KL is rated for 380 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
RLB1314-681KL lists a DC resistance of 790mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
RLB1314-681KL uses a package or case of Radial, Vertical Cylinder. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from RLB1314-681KL to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 680 µH |
| Tolerance | ±10% |
| Current Rating | 380 mA |
| DC Resistance (DCR) | 790mOhm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.461" Dia (11.70mm) |
| Case / Size | Radial, Vertical Cylinder |
| Package / Case | Radial, Vertical Cylinder |
| Supplier | Bourns Inc. |
| Description | FIXED IND 680UH 380MA 790 MOHM |
| Series | RLB |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | 30 @ 796kHz |
| Self Resonant Frequency | 1.9MHz |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.512" (13.00mm) |
