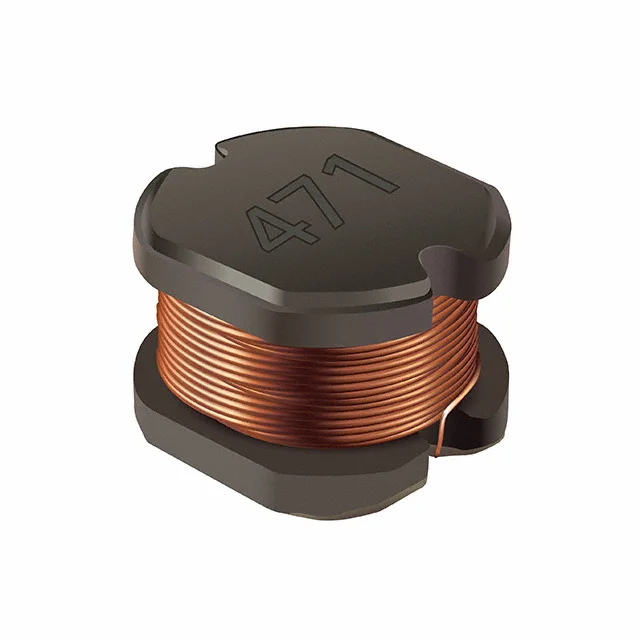

FIXED IND 39UH 1.9A 160 MOHM SMD
| Inductance | 39 µH |
| Tolerance | ±20% |
| Current Rating | 1.9 A |
| DC Resistance (DCR) | 160mOhm Max |
| saturationCurrent | 1.5A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.307" L x 0.276" W (7.80mm x 7.00mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 39UH 1.9A 160 MOHM SMD |
| Series | SDE0805A |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | 12.6MHz |
| ratings | AEC-Q200 |
| testFrequency | 1 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.217" (5.50mm) |
| features | - |
