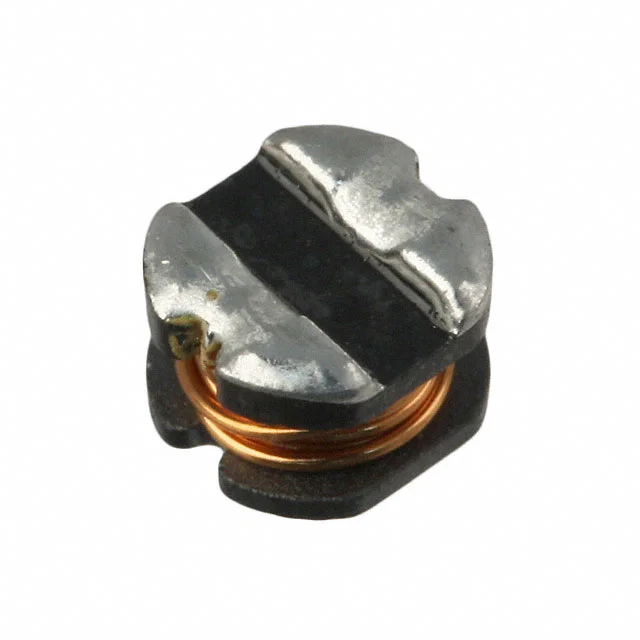

Description
FIXED IND 30UH SURFACE MOUNT
Specifications
Inductance
30 µH
Dimensions
0.177" L x 0.157" W (4.50mm x 4.00mm)
Parameter Guide
Understand the key electrical and mechanical specifications for SDR0403-300JL.
Inductance
30 µH
SDR0403-300JL has an inductance value of 30 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
Package / Case
Nonstandard
SDR0403-300JL uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SDR0403-300JL to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 30 µH |
| Tolerance | ±5% |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.177" L x 0.157" W (4.50mm x 4.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 30UH SURFACE MOUNT |
| Series | SDR0403 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.138" (3.50mm) |
