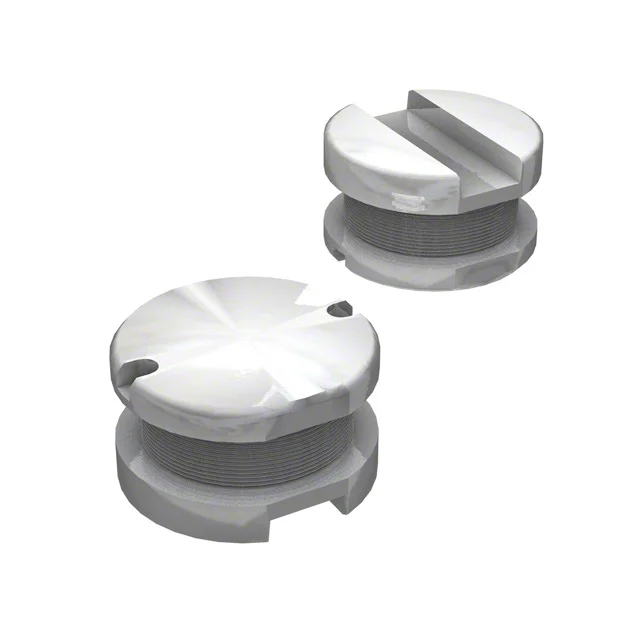

FIXED IND 39UH 650MA 420 MOHM
| Inductance | 39 µH |
| Tolerance | ±10% |
| Current Rating | 650 mA |
| DC Resistance (DCR) | 420mOhm Max |
| saturationCurrent | 800mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.197" L x 0.189" W (5.00mm x 4.80mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 39UH 650MA 420 MOHM |
| Series | SDR0503 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 15 @ 2.52MHz |
| selfResonantFreq | 17MHz |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.130" (3.30mm) |
| features | - |
