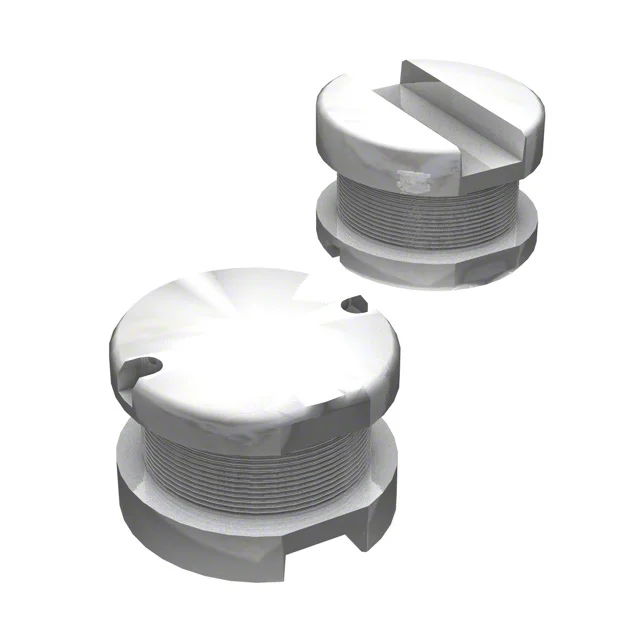

Description
FIXED IND 220UH 260MA 2 OHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SDR0603-221KL.
SDR0603-221KL has an inductance value of 220 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SDR0603-221KL is rated for 260 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SDR0603-221KL lists a DC resistance of 2Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SDR0603-221KL uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SDR0603-221KL to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 220 µH |
| Tolerance | ±10% |
| Current Rating | 260 mA |
| DC Resistance (DCR) | 2Ohm Max |
| Saturation Current | 460mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.228" L x 0.228" W (5.80mm x 5.80mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 220UH 260MA 2 OHM SMD |
| Series | SDR0603 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | 26 @ 796kHz |
| Self Resonant Frequency | 6MHz |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.154" (3.90mm) |
