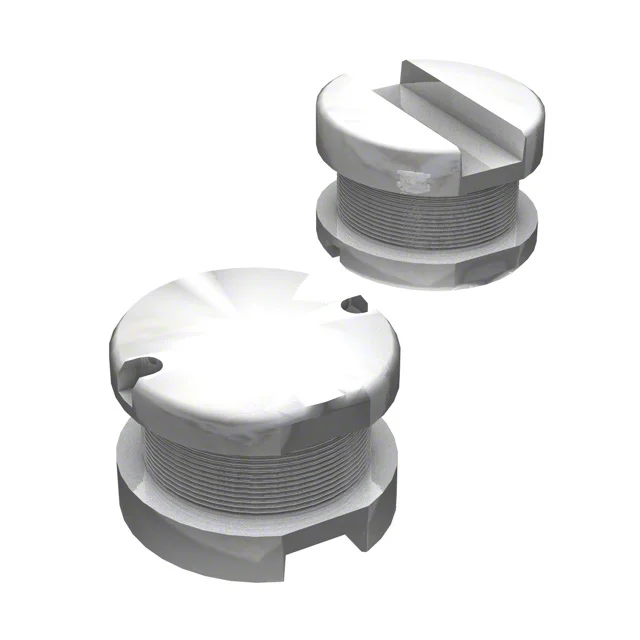

FIXED IND 390UH 180MA 3.4 OHM
| Inductance | 390 µH |
| Tolerance | ±10% |
| Current Rating | 180 mA |
| DC Resistance (DCR) | 3.4Ohm Max |
| saturationCurrent | 320mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.228" L x 0.228" W (5.80mm x 5.80mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 390UH 180MA 3.4 OHM |
| Series | SDR0603 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 28 @ 796kHz |
| selfResonantFreq | 4MHz |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.154" (3.90mm) |
| features | - |
