Description
FIXED IND 6.8UH 1.38A 110 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SDR0603-6R8ML.
SDR0603-6R8ML has an inductance value of 6.8 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SDR0603-6R8ML is rated for 1.38 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SDR0603-6R8ML lists a DC resistance of 110mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SDR0603-6R8ML uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SDR0603-6R8ML to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 6.8 µH |
| Tolerance | ±20% |
| Current Rating | 1.38 A |
| DC Resistance (DCR) | 110mOhm Max |
| Saturation Current | 1.8A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.228" L x 0.228" W (5.80mm x 5.80mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 6.8UH 1.38A 110 MOHM |
| Series | SDR0603 |
| Product Status | Active |

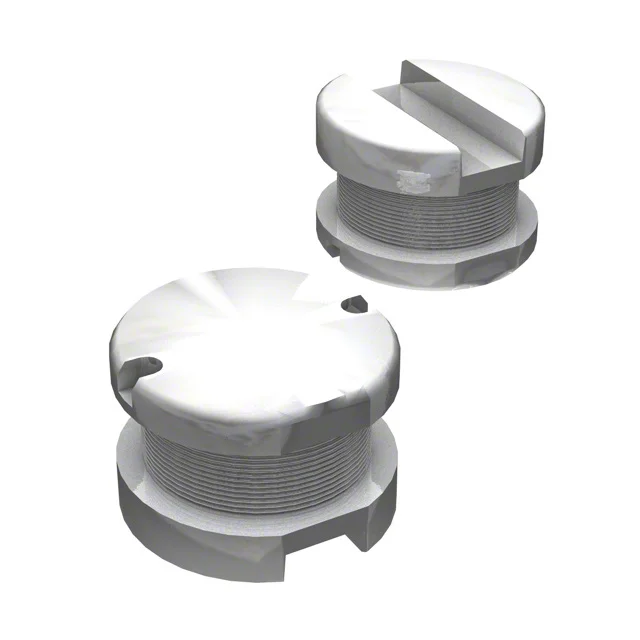

| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | 19 @ 7.96MHz |
| Self Resonant Frequency | 44MHz |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.154" (3.90mm) |
