Description

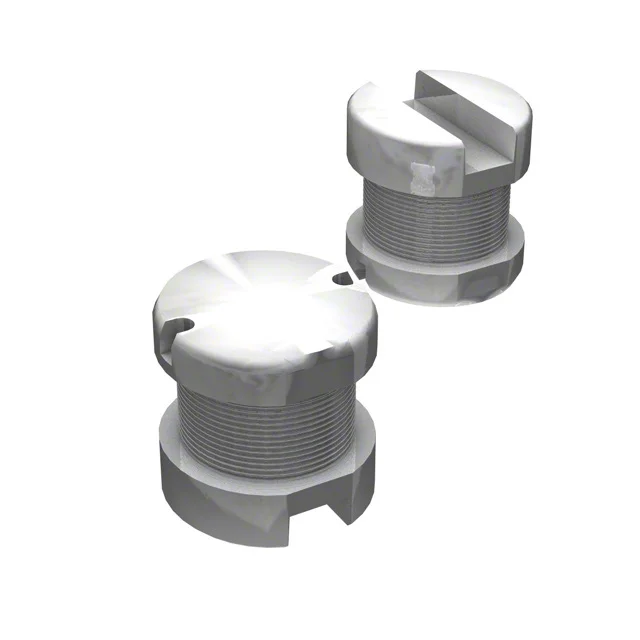

FIXED IND 15UH 1.3A 140 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SDR0604-150YL.
SDR0604-150YL has an inductance value of 15 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SDR0604-150YL is rated for 1.3 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SDR0604-150YL lists a DC resistance of 140mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SDR0604-150YL uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SDR0604-150YL to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 15 µH |
| Tolerance | ±15% |
| Current Rating | 1.3 A |
| DC Resistance (DCR) | 140mOhm Max |
| Saturation Current | 1.6A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.228" L x 0.228" W (5.80mm x 5.80mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 15UH 1.3A 140 MOHM SMD |
| Series | SDR0604 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | 30 @ 2.52MHz |
| Self Resonant Frequency | 20MHz |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.189" (4.80mm) |
