Description

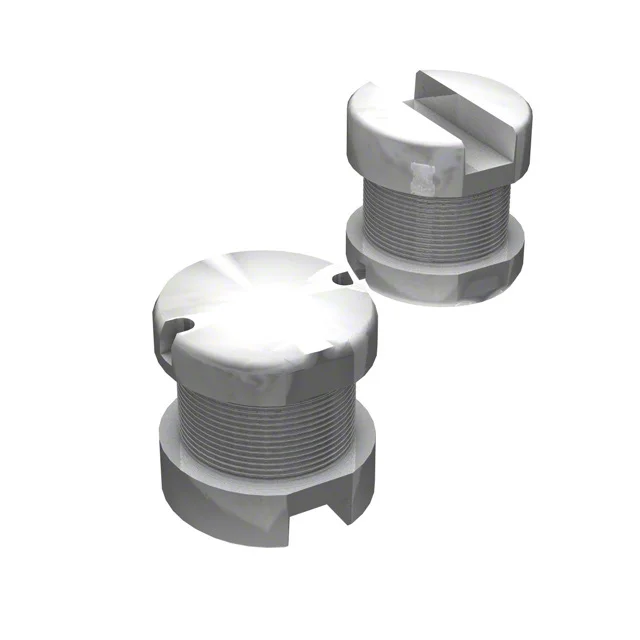

FIXED IND 39UH 800MA 320 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SDR0604-390KL.
SDR0604-390KL has an inductance value of 39 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SDR0604-390KL is rated for 800 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SDR0604-390KL lists a DC resistance of 320mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SDR0604-390KL uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SDR0604-390KL to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 39 µH |
| Tolerance | ±10% |
| Current Rating | 800 mA |
| DC Resistance (DCR) | 320mOhm Max |
| Saturation Current | 1A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.228" L x 0.228" W (5.80mm x 5.80mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 39UH 800MA 320 MOHM |
| Series | SDR0604 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | 24 @ 2.52MHz |
| Self Resonant Frequency | 13MHz |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.189" (4.80mm) |
