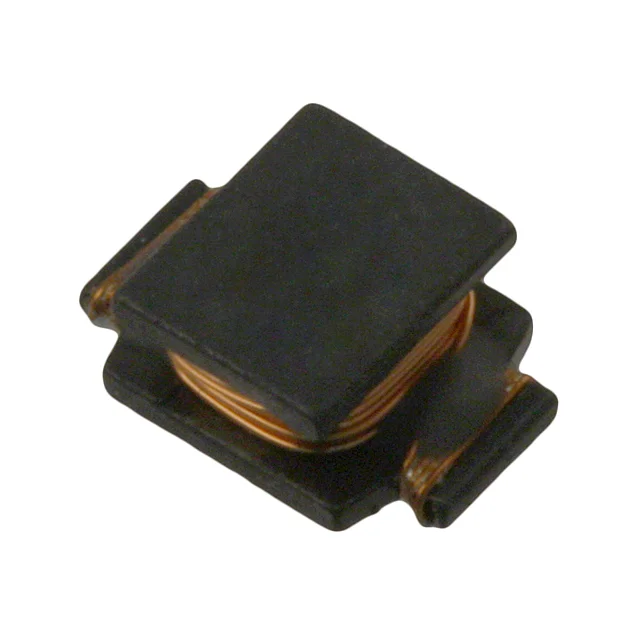

FIXED IND 1.2UH 2A 47 MOHM SMD
| Inductance | 1.2 µH |
| Tolerance | ±20% |
| Current Rating | 2 A |
| DC Resistance (DCR) | 47mOhm Max |
| saturationCurrent | 3A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.256" L x 0.177" W (6.50mm x 4.50mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 1.2UH 2A 47 MOHM SMD |
| Series | SDR0703 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 25 @ 7.96MHz |
| selfResonantFreq | 145MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.106" (2.70mm) |
| features | - |
