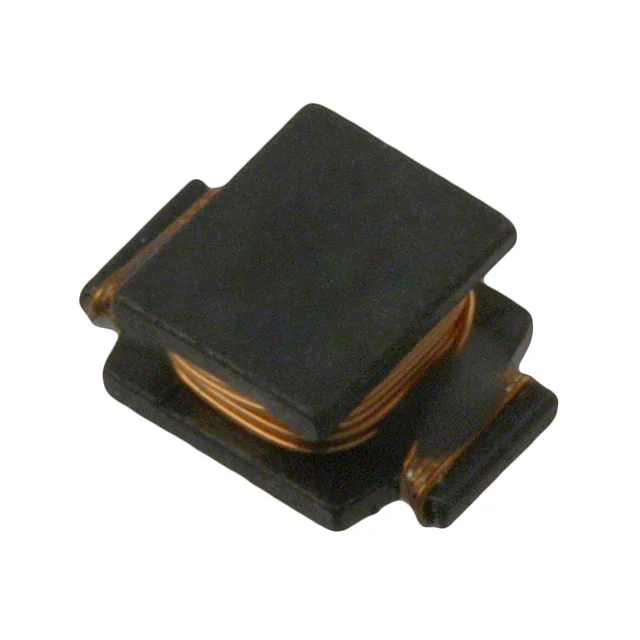

FIXED IND 4.7UH 1.5A 100 MOHM
| Inductance | 4.7 µH |
| Tolerance | ±10% |
| Current Rating | 1.5 A |
| DC Resistance (DCR) | 100mOhm Max |
| saturationCurrent | 2.1A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.256" L x 0.177" W (6.50mm x 4.50mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 4.7UH 1.5A 100 MOHM |
| Series | SDR0703 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 20 @ 7.96MHz |
| selfResonantFreq | 60MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.106" (2.70mm) |
| features | - |
