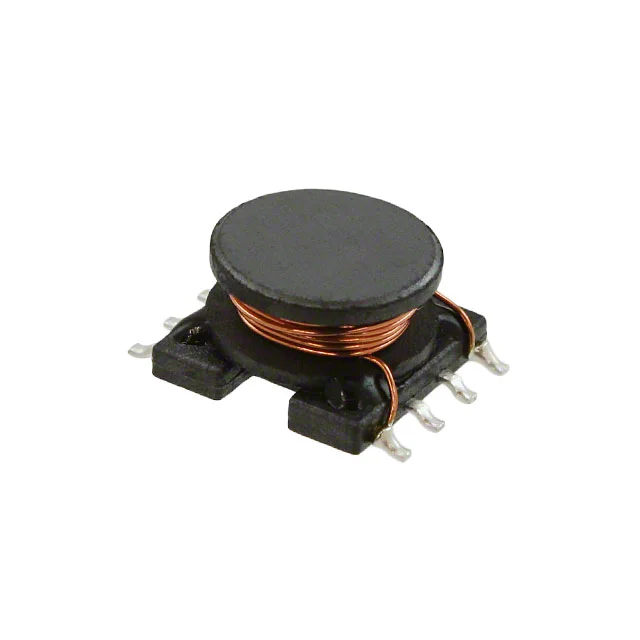

FIXED IND 1.2MH 200MA 4 OHM SMD
| Inductance | 1.2 mH |
| Tolerance | ±10% |
| Current Rating | 200 mA |
| DC Resistance (DCR) | 4Ohm Max |
| saturationCurrent | 280mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.492" L x 0.413" W (12.50mm x 10.50mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 1.2MH 200MA 4 OHM SMD |
| Series | SDR0906 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 60 @ 252kHz |
| selfResonantFreq | 2MHz |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.248" (6.30mm) |
| features | - |
