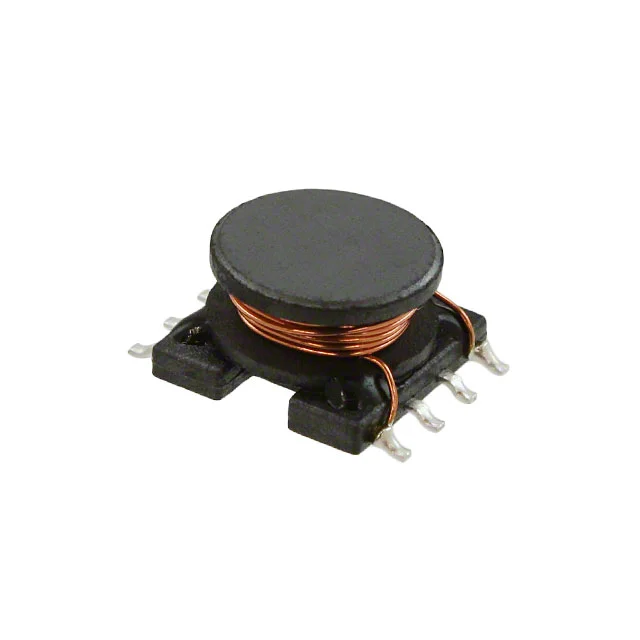

FIXED IND 47UH 1.1A 230 MOHM SMD
| Inductance | 47 µH |
| Tolerance | ±10% |
| Current Rating | 1.1 A |
| DC Resistance (DCR) | 230mOhm Max |
| saturationCurrent | 1.5A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.492" L x 0.413" W (12.50mm x 10.50mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 47UH 1.1A 230 MOHM SMD |
| Series | SDR0906 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 25 @ 2.52MHz |
| selfResonantFreq | 12MHz |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.248" (6.30mm) |
| features | - |
