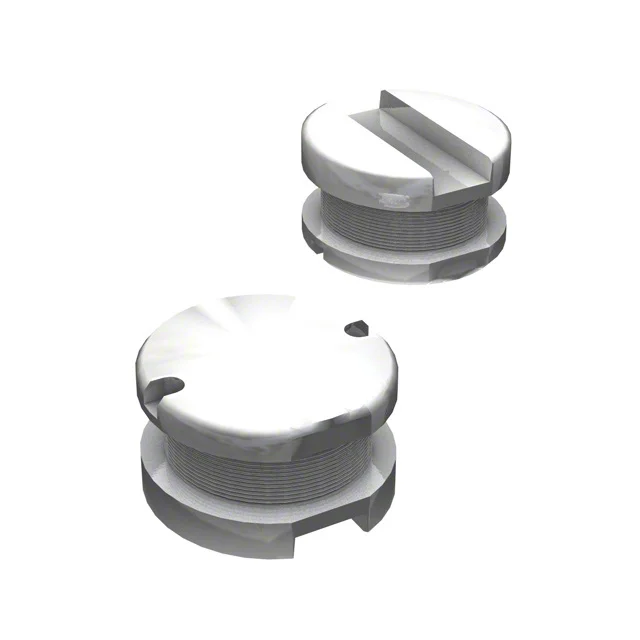

FIXED IND 1.8MH 170MA 6.8 OHM
| Inductance | 1.8 mH |
| Tolerance | ±10% |
| Current Rating | 170 mA |
| DC Resistance (DCR) | 6.8Ohm Max |
| saturationCurrent | 380mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.386" L x 0.386" W (9.80mm x 9.80mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 1.8MH 170MA 6.8 OHM |
| Series | SDR1006 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 31 @ 252kHz |
| selfResonantFreq | 1.6MHz |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.228" (5.80mm) |
| features | - |
