Description

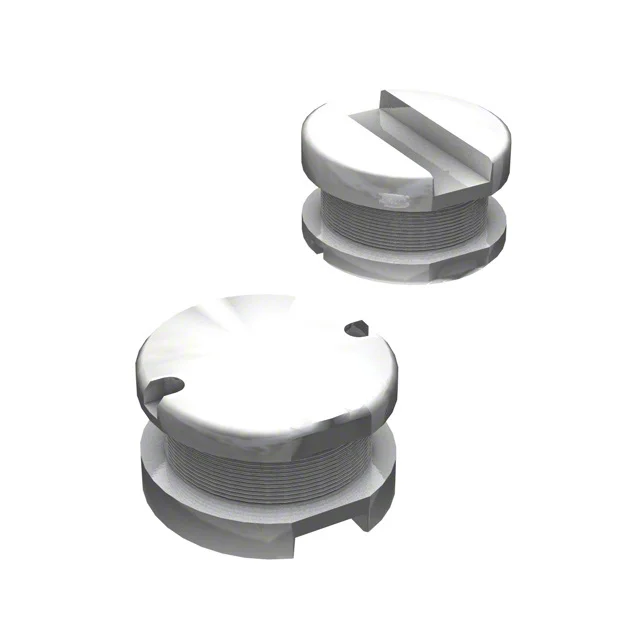

FIXED IND 3.9MH 110MA 14.8 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SDR1006-392KL.
SDR1006-392KL has an inductance value of 3.9 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SDR1006-392KL is rated for 110 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SDR1006-392KL lists a DC resistance of 14.8Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SDR1006-392KL uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SDR1006-392KL to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 3.9 mH |
| Tolerance | ±10% |
| Current Rating | 110 mA |
| DC Resistance (DCR) | 14.8Ohm Max |
| Saturation Current | 280mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.386" L x 0.386" W (9.80mm x 9.80mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 3.9MH 110MA 14.8 OHM |
| Series | SDR1006 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | 32 @ 252kHz |
| Self Resonant Frequency | 1.2MHz |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.228" (5.80mm) |
