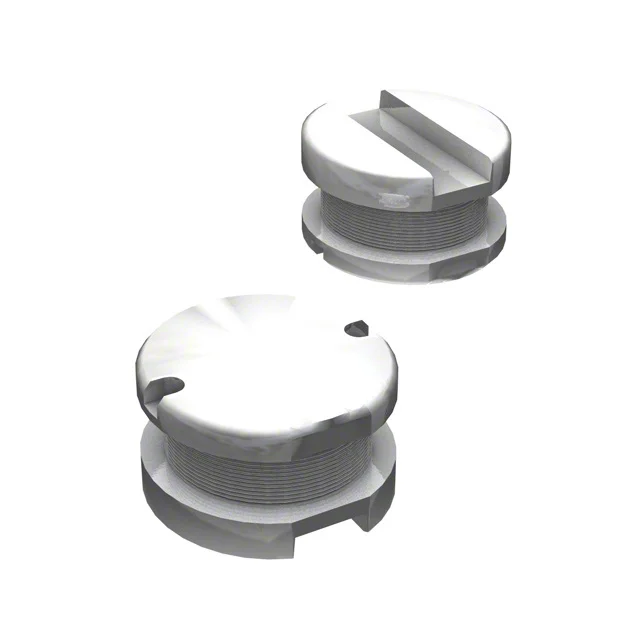

FIXED IND 8.2UH 3A 48 MOHM SMD
| Inductance | 8.2 µH |
| Tolerance | ±20% |
| Current Rating | 3 A |
| DC Resistance (DCR) | 48mOhm Max |
| saturationCurrent | 5.4A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.386" L x 0.386" W (9.80mm x 9.80mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 8.2UH 3A 48 MOHM SMD |
| Series | SDR1006 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 31 @ 7.96MHz |
| selfResonantFreq | 24MHz |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.228" (5.80mm) |
| features | - |
