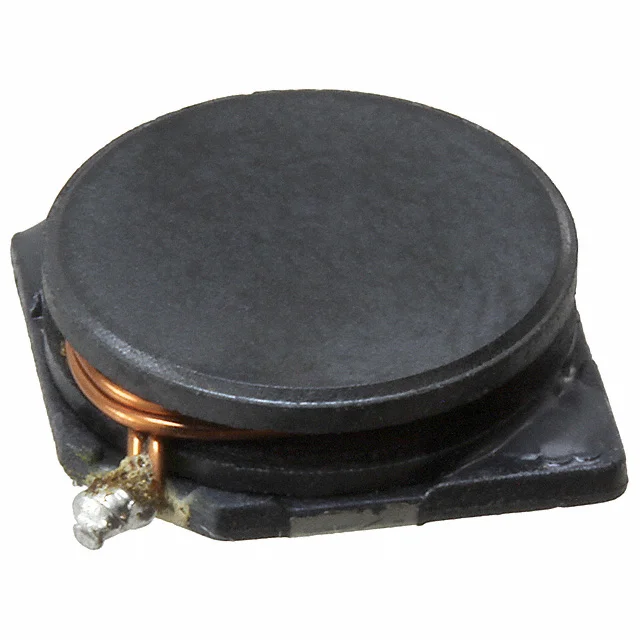

FIXED IND 100UH 700MA 540 MOHM
| Inductance | 100 µH |
| Tolerance | ±10% |
| Current Rating | 700 mA |
| DC Resistance (DCR) | 540mOhm Max |
| saturationCurrent | 750mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.394" L x 0.394" W (10.00mm x 10.00mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 100UH 700MA 540 MOHM |
| Series | SDR1030 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 14 @ 796kHz |
| selfResonantFreq | 9.3MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.130" (3.30mm) |
| features | - |
