Description

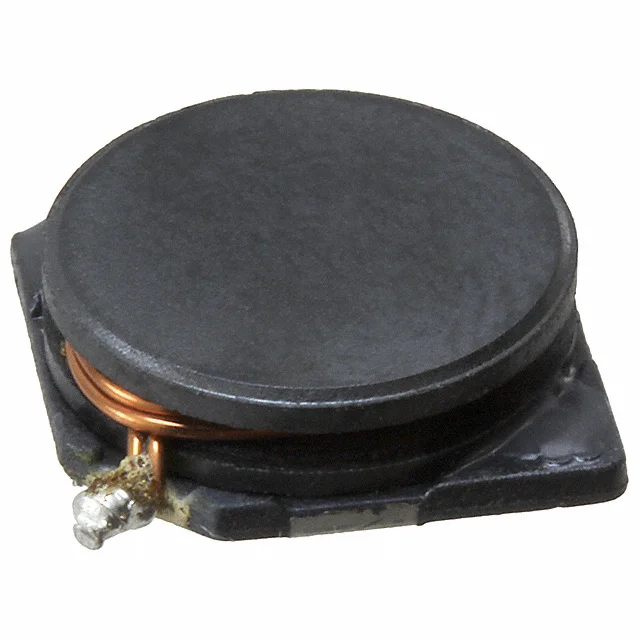

FIXED IND 15UH 1.65A 100 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SDR1030-150M.
SDR1030-150M has an inductance value of 15 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SDR1030-150M is rated for 1.65 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SDR1030-150M lists a DC resistance of 100mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SDR1030-150M uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SDR1030-150M to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 15 µH |
| Tolerance | ±20% |
| Current Rating | 1.65 A |
| DC Resistance (DCR) | 100mOhm Max |
| Saturation Current | 1.85A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.394" L x 0.394" W (10.00mm x 10.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 15UH 1.65A 100 MOHM |
| Series | SDR1030 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | 18 @ 2.52MHz |
| Self Resonant Frequency | 25.7MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.130" (3.30mm) |
