Description

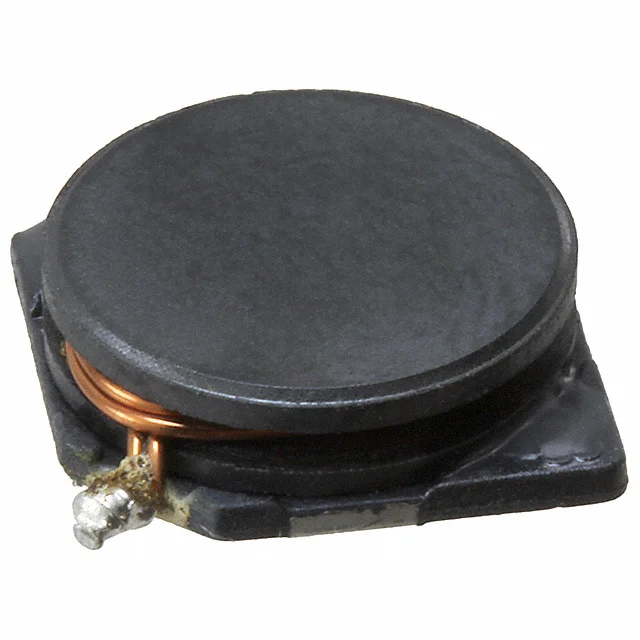

FIXED IND 33UH 1.1A 220 MOHM SMD
Specifications
Inductance
33 µH
Current Rating
1.1 A
DC Resistance (DCR)
220mOhm Max
Dimensions
0.394" L x 0.394" W (10.00mm x 10.00mm)
Product Attributes
Manufacturer Verified
Last verified: 6/11/2026| Inductance | 33 µH |
| Tolerance | ±20% |
| Current Rating | 1.1 A |
| DC Resistance (DCR) | 220mOhm Max |
| saturationCurrent | 1.25A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.394" L x 0.394" W (10.00mm x 10.00mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 33UH 1.1A 220 MOHM SMD |
| Series | SDR1030 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 16 @ 2.52MHz |
| selfResonantFreq | 16.4MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.130" (3.30mm) |
| features | - |
